Paint Coating Ink Laboratory Test Instruments

Paint Applicator/ Density cups

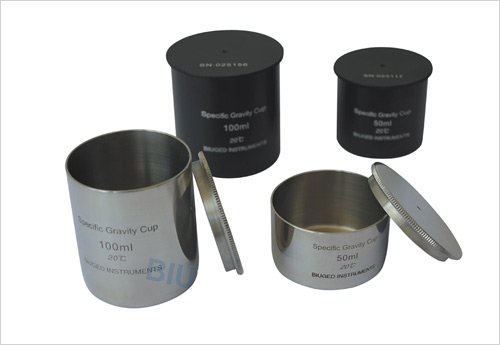

The Density of a coating should remain constant from batch to batch. Also known as Density（Specific Gravity）Cups. Specific Gravity Cups are used to determine the specific weight per unit volume of a liquid at a given temperature.

A stainless steel or anodized aluminum precision instrument for determining the specific weight of paints and similar products. A tolerance of 0.1% is guaranteed. Testing is carried out in accordance with ISO at 23±2℃.

This instrument consists of a cylindrical container and cover with a hole for exhaust of excess liquid for any excess Paint（or Ink）to be removed when the cup cover is pressing tightly. By doing so, will also ensure that no air bubbles（or pockets of air）are being trapped.

It is in according with DIN 53217,ISO 2811,and BS 3900 A19.And each desity cup comes with Calaibration Certificate.

Main Technical Parameters

Order Information	Capacity	Unit	Material
BGD 296/1	37cc/ml	Metric	Stainless steel
BGD 296/2	50cc/ml	Metric	Aluminum
BGD 296/3	50cc/ml	Metric	Stainless steel
BGD 296/4	100cc/ml	Metric	Aluminum
BGD 296/5	100cc/ml	Metric	Stainless steel

Procedure

-Weight cleaned density cup empty and record weight

-Temper density cup and test liquid（20℃±0.5℃；68°F±1.0°F）

-Fill density cup

-Put cover on without tilting

-Avoid air bubbles

-Remove overflowing liquid carefully with absorbent cloth

-Weight filled density cup

-calculate density

Four-sided Applicator

Aflexible and easy to use applicator, combining 4 gaps size in one unit. The cylindrical shape provides excellent results particularly on firm substrates and smooth surface. By simply rotation through 90 angles, the next gap size is placed onto the test surface.
It is designed with ASTM D 823-25 and made of high-grade, corrosion-resistant stainless steel 440C.
