VAKUMLU FİLM APLİKATÖR YATAĞI

        These drawdown vacuum plates are machined from hard aluminum solid stock and finished with grey hard coat anodized that gives a high durability with corrosion resistance that will dramatically increases wear and longevity of the vacuum plate. The top section of the plate has a series of holes. When attached by a hose connection to a vacuum pump or sink aspirator, the vacuum created holds down paper charts during application of wet coatings with any type of film applicator.

        Each plate comes complete with a chrome plated brass ball valve with an easy on/off lever handle to enable or disable vacuum, and includes a high quality vacuum pump.

■ Ordering information：

BGD 217/1--- Vacuum Film Applicator Bed

Overall size：360×250×32.5mm

Area with hole size：285×204mm

BGD 217/2--- Vacuum Film Applicator Bed

Overall size：533×340×32.5mm

Area with hole size：460×307mm

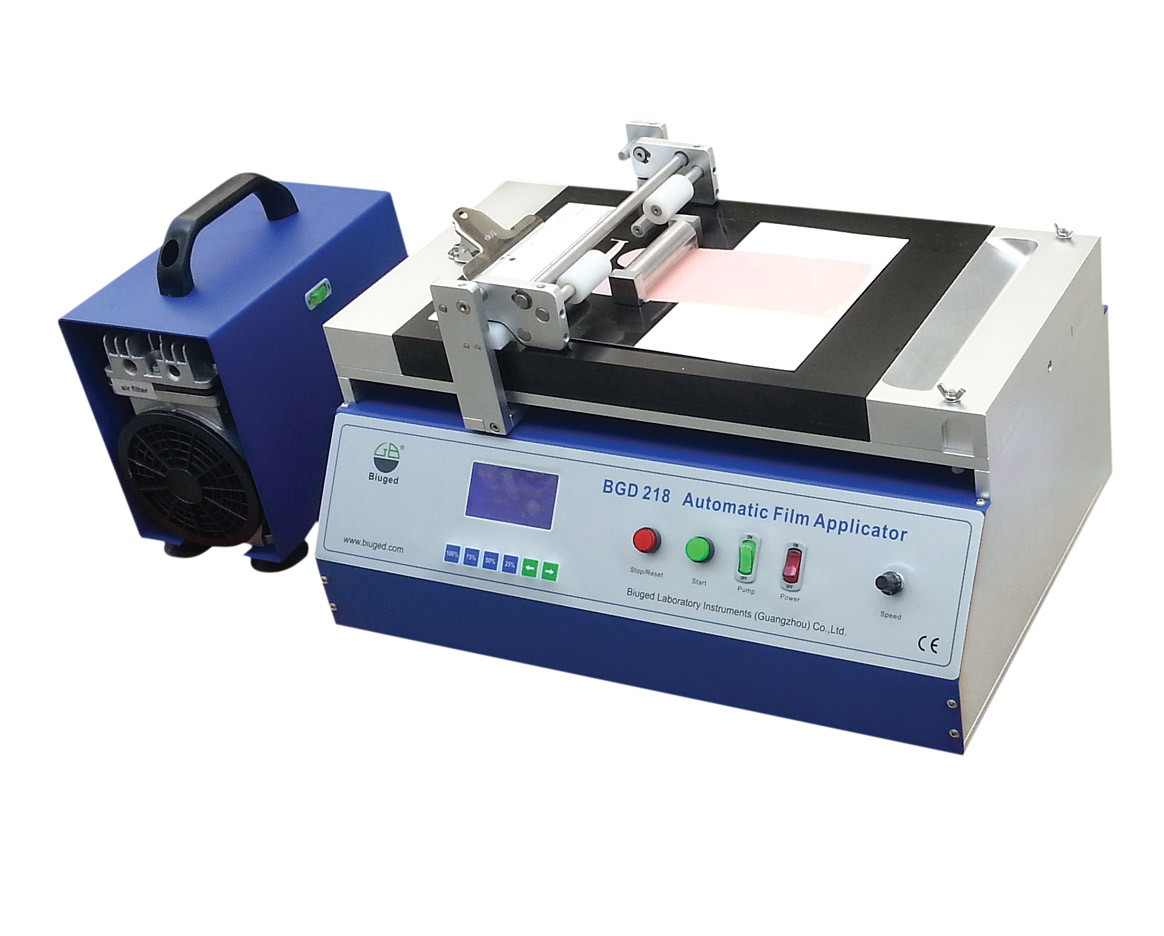

OTOMATİK FİLM APPLİKATÖR

        Automatic Film Applicator enables experimental chemists to conveniently draw down precise coating film on the different substrates so as to reduce and eliminate errors caused by manual factors. Factors affecting the draw down are the shear rate and downward force applied to the applicator tool. The equipment sucks test paper smoothly on the vacuum bed. It greatly improves the reproducibility of paint film.

BGD 218 is the newest product, comparing the traditional products, it has:

◆ Adjustable variable speed：2~100mm/s

◆ High precisionlinear guide bar and direct current motor without carbon brush. Making the draw down speed more stable.

◆ Reasonable design bracket, easily and simply operated, and can add any load。

◆ Special precise machining vacuum suction-gas plate with high smooth precision and high hardness-for better repeatability

◆ Can set the starting point freely, is suitable for different size substrates

◆ Four types application distance can be selected freely.

◆ Applicable to all Biugeds different type and size applicators and wire bars

◆ External vacuum pump eliminate all shake coming from traditional structure（put pump into machine）

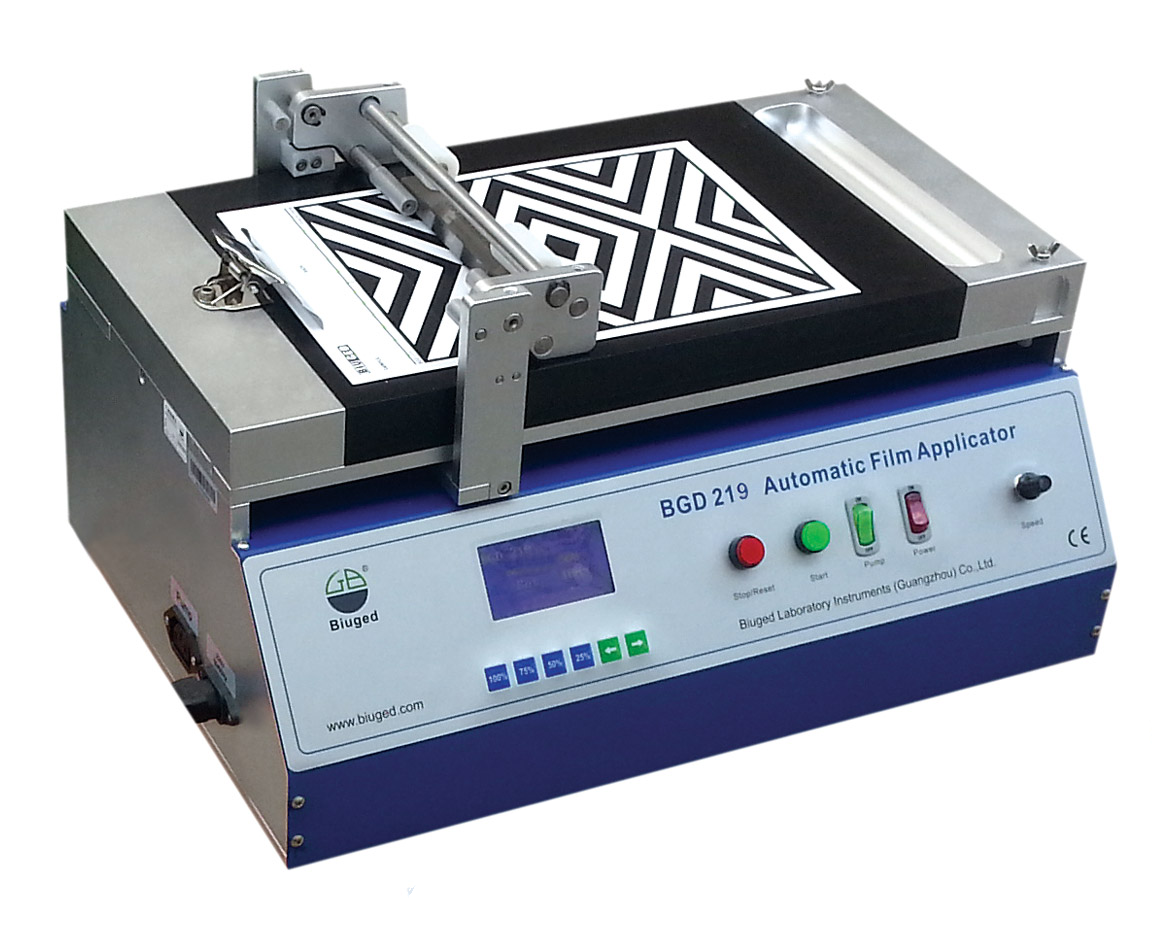

TUTMA APARATIYLA FİLM APPLİKATÖR



    To enable experimental chemists conveniently draw down precise coating film on the different substrate, This type film Applicator with Holding Device is well-designed. It greatly improves the reproducibility of paint film.

Main Technical Parameters：
■ Draw down base：470mm×200mm
■ Draw down length：230mm
■ Draw down speed：0～8cm/s（adjustable variable speed）
■ Total power：100W
■ Electrical power source：220V 50Hz
■ Overall dimensions：470×370×240mm（Length by width by height）
■ Weight：34Kg
■ Ordering information：BGD 219--- Film Applicator with Holding Device



DÜŞÜŞ PLAKASI

Provides an economical and convenient means for making drawdowns of uniform film thickness.
        It consists of a glass clip board set firmly on a phenolic plastic panel. The entire apparatus is mounted on rubber supports is order to eliminate sliding while in use. The drawdown surface is 6.4mm thick polished glass, equal in planarity to fine mirror glass. A steel clip holds the chart firmly while the drawdown is made. The workable area is equal to the size of the glass plate.

◆ Easy to use and easy toclean
◆ Holds charts securely for drawdowns

◆ Helps to achieve uniform results

◆ Ordering information：

     BGD 2608---Drawdown Plate（Glass plate size 299×381mm；for drawdowns on the paper charts）
     BGD 2609--- Drawdown Plate（Glas splate size 178×508mm；for scrub test panel）
