Glossmetre Parlaklık Ölçüm Cihazı

          These economic glossmeters use metal shell, separate standard board and have portable small size.It is designed to measure gloss of paint，film，ink，plastics，stone，paper，tile，enamel，etc.

 Features

◆ Easy to use-only one button operation.

◆ Simple to calibrate-Simple to use.

◆ Saving electrical power，it only needs a battery and can works exceed sixty hours continuously（can measure ten thousand data points）.

◆ Special technical design about moisture protection ensures you can use it harsh environments.

◆ No time to warm up and measure immediately after operated. The data is stable and no drift

◆ With long lifetime light source，no replacement needed .

◆ Automatic zero adjustment.

Main Technical Parameters：

■ Measuring rang：0-160.0GU（85°）；0-1,000.0GU（60°）；0-2,000.0GU（20°）；

■ Resolution：±0.1GU

■ Accuracy：±1.2GU

■ Stability：±0.4GU/30min

■ Power Supply：1 battery AA alkaline

■ Voltage supply ：0.8V-1.5V

■ The size of facula：11×22mm

■ The size of measuring aperture：10×10mm（20°）；10×20mm（60°）；8×30mm（85°）；

■ Work condition：Temperature：0℃-40℃； Relative humidity：＜85%

■  Dimensions：

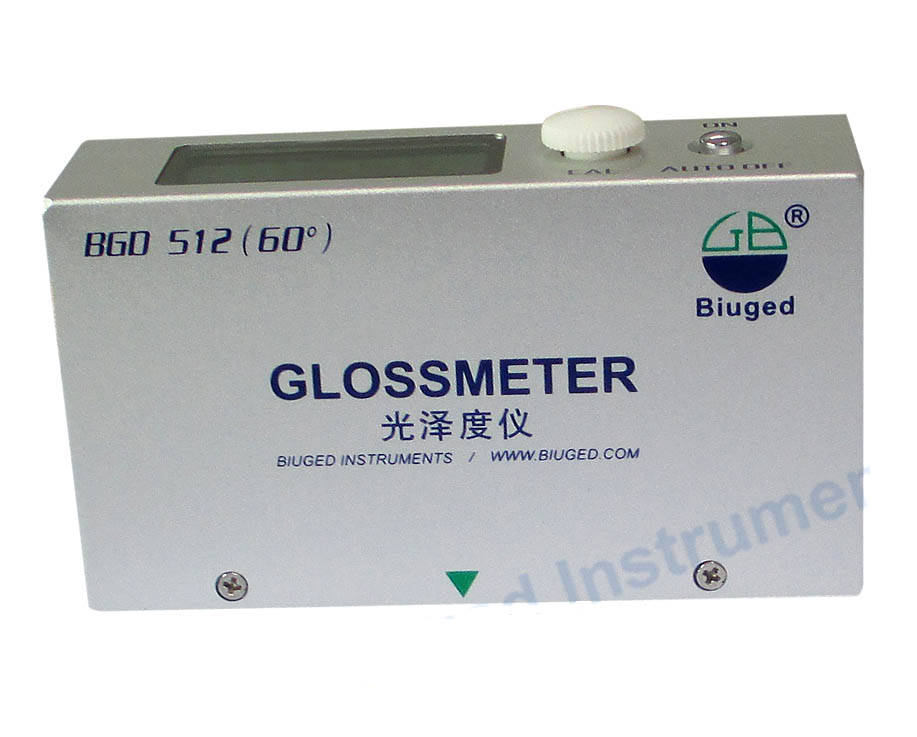

     BGD 512→114mm（L）×32mm（D）×64mm（H）

     BGD 515→142mm（L）×32mm（D）×64mm（H）

■ Weight： BGD 512→180g；BGD 515→390g；

BGD 513 Basic Glossmeter uses plastic shell and one-body standard board.It can be used in many fields as below：

  → All kinds of coating and finishing surfaces, such as paints, varnishes, printing ink, etc.
  → Decorative materials, such as marble, granite, polishing brick, ceramic tile and so on.
  → The other kinds of materials and objects, such as plastic, woodenware, paper, etc.

At the same time, it has better characters comparing with old types：

◆ Small, Smart, Stable.
◆ Simple to use.
◆ A single battery only. AA size, Rechargeable or alkaline.
◆ The knob protector for operating with ease.

Main Technical Parameters：
■ Reading Range： 0.0～199.9GU

■ Indication Error：±1.2GU

■ Measuring Area： 20×10 mm

■ Incidence Angle：60Deg

■ Volume（L×W×H）：123×38×65 mm

■ Main Weight：300g
■ Power Supply：DC：1.2～1.5；One AA-size battery

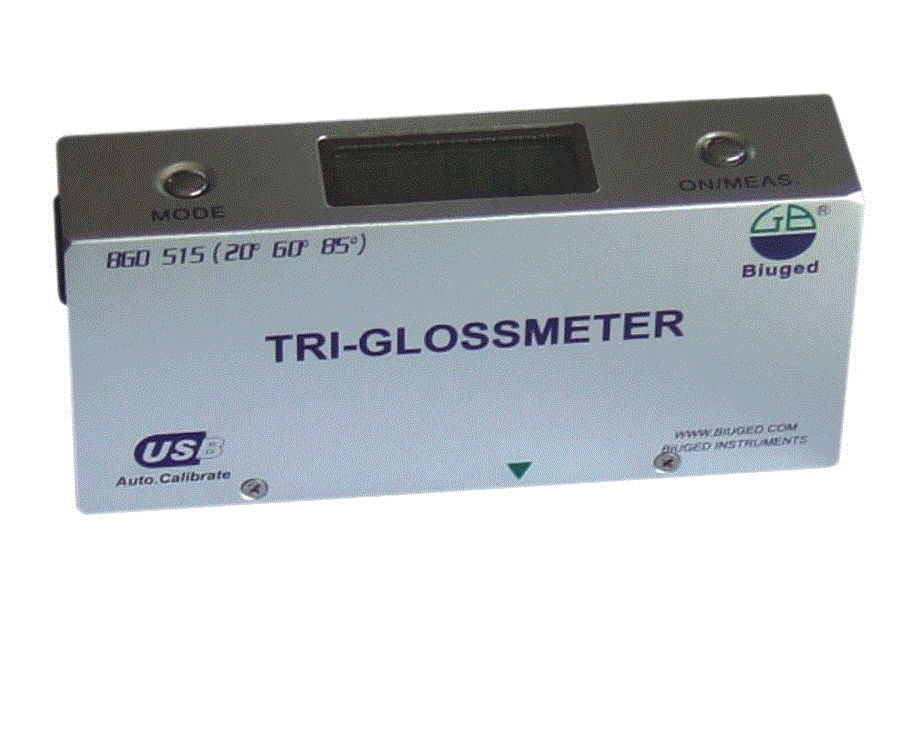

 The BGD 515（has three 20º，60º，85ºmeasurement geometries） glossmeter is a new small portable instrument。It is Suitable for measurements on surfaces ranging from matt to high gloss and is designed to measure gloss of paint，film，ink，plastics，stone，paper，tile，enamel，etc。

        It is designed with National（DIN）and International（ISO，BS，ASTM ）Standards：
                    ISO 2813 ；DIN 67530；ASTM D 523，D2457，C 584，D1455；

Features

◆ Easy to use-only one button operation.

◆ Simple to calibrate-Simple to use.

◆ Saving electrical power，it only needs a battery and can works exceed sixty hours continuously（can measure ten thousand data points）.

◆ Special technical design about moisture protection ensures you can use it harsh environments.

◆ No time to warm up and measure immediately after operated。The data is stable and no drift

◆ Having long lifetime light source，no replacement needed .

◆ Automatic zero adjustment.

◆ Simultaneous display 20°/60°/85° value

◆  Operating by only one button； with data statistics function
◆  Calibrate automatically ；Quartz standard board and no abrasion forever
◆  with USB interface，easy to export data
◆  with My GLOSS software, can finish data statistics and report

◆  More wide testing range, automatic swapping of testing range

◆ Energy efficient. Over 100,00 readings with one battery.

Main Technical Parameters：

■ Measuring rang：0-199.9GU

■ Resolution：±0.1GU

■ Accuracy：±1.2GU

■ Stability：±0.4GU/30min

■ Power Supply：1 battery AA alkaline

■ Voltage supply ：0.8V-1.5V

■ The size of facula：11×22mm

■ The size of measuring aperture：14×28mm

■ Work condition：Temperature：0℃-40℃； Relative humidity：＜85%

■ Dimensions：142mm（L）×32mm（D）×64mm（H）

■ Weight： 320g

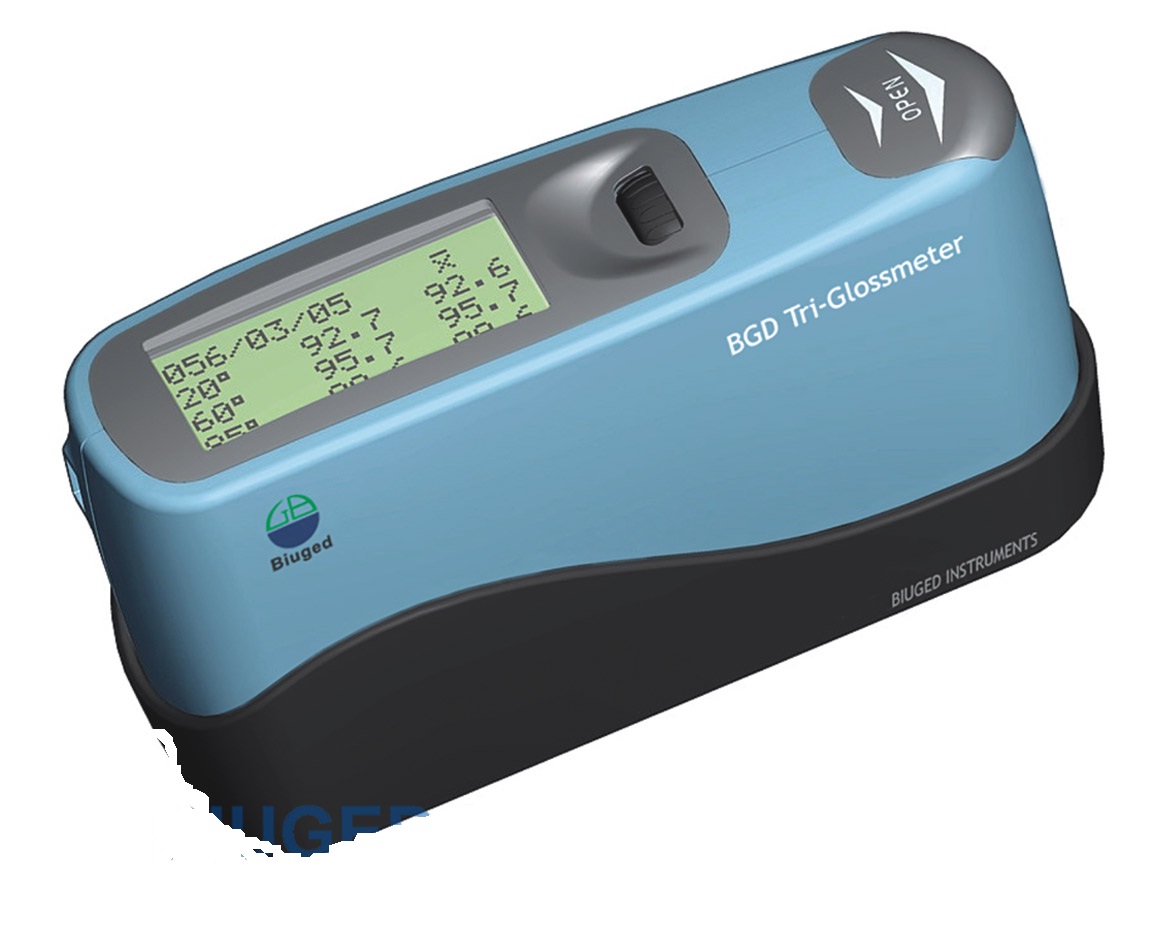

        This versatile glossmeter covers a wide range of applications from matt to high gloss measurements conforming to International Standard. Samples can be measured separately at each angle or at 2 or 3 angles simultaneously and effectively processed using the powerful built-in software. And it has many advanced features as below：

         ◆ All kinds of coating and finishing surfaces, such as paints, varnishes, printing ink, etc.
         ◆ Decorative materials, such as marble, granite, polishing brick, ceramic tile and so on.
         ◆ The other kinds of metallic and non-metallic materials and objects, such as plastic, woodenware, paper, etc. .
         ◆ Complies with standards as：ASTM D 523,D2457；DIN 67530；ISO 2813 ,ISO 7668；JIS Z8741,Bs3900,BS 6161 ETC.
         ◆ Calibrate automatically.
         ◆ Simultaneous display 20°/60°/85°-for high gloss to matte coatings
         ◆ Interface： Serial RS 232
         ◆ Software： BGD GLOSS software included for professional documentation in Excel
         ◆ Memory：  10,000 measurements or 999 data groups
         ◆ Power Supply： A single battery only. AA size, Rechargeable or alkaline.
         ◆ Comes Complete With：
       Main Device, Holder with Working Standard, Traceable Certificate, BIUGED GOLSSMETER Data Operator Software, Cable for PC Serial port, USB Adapter （optional）, Users Manual, Carrying Bag.
        △ Guaranteed  for  a  year  and  repaired  for  ever.
        △ Anytime  be  checked  free.
        △ Technical  support  on  the  gloss  measurement.
        △ Customizing  any  glossmeter  for  a  special  application.

       Main Technical Parameters：

        ■  Measuring rang：0-199.9-2,000GU

        ■  Resolution：±0.1GU

        ■  Accuracy：±1.5GU

        ■  Stability：±0.4GU/30min

        ■  Power Supply：1 battery AA alkaline

        ■  Voltage supply ：0.8V-1.5V

        ■  Measuring Area：9×10mm；9×16mm；5×39mm

        ■  Dimensions：155mm（L）×48mm（D）×75mm（H）

        ■  Weight： 400g
