Kalınlık Ölçüm Cihazları

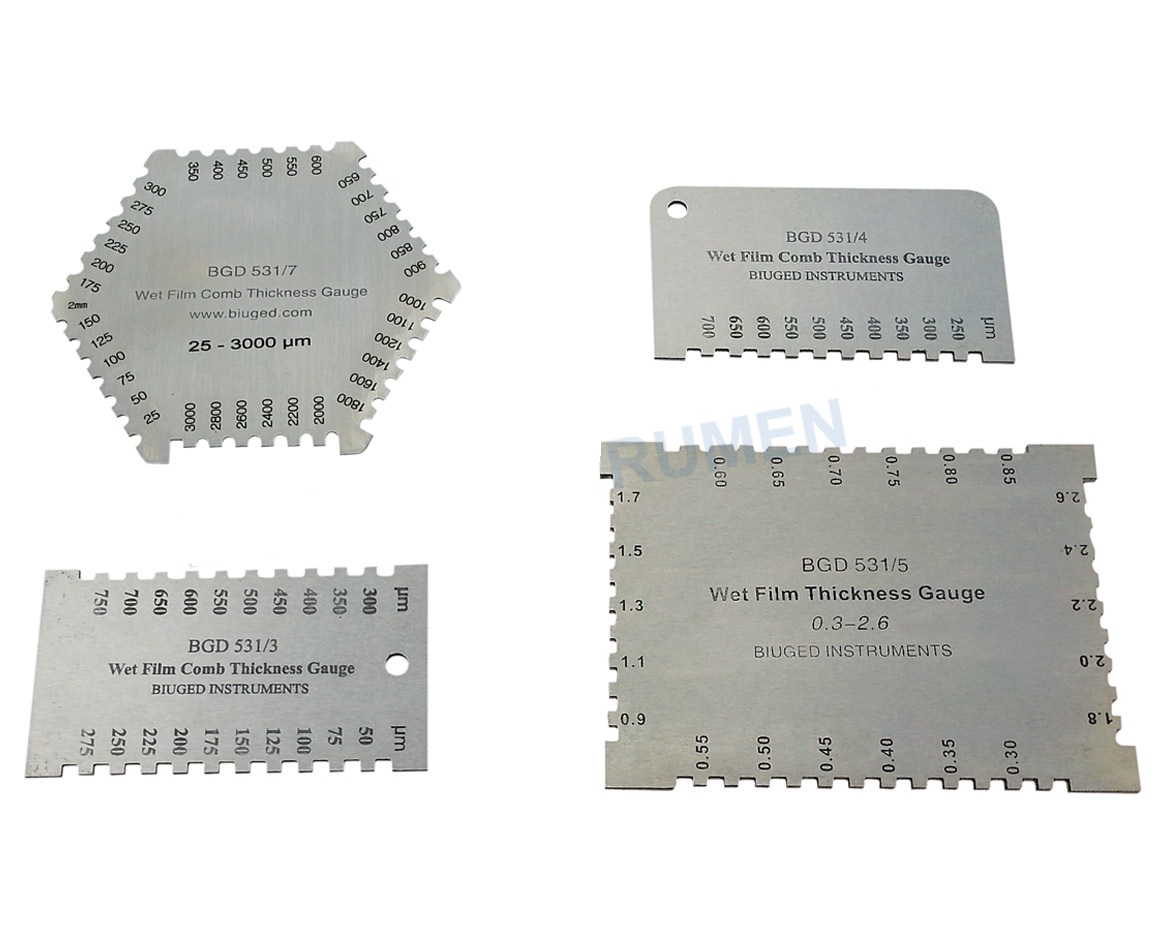

Islak Film Tarak kalınlığı Ölçer

The Wet Film Thickness Gauges are made of a comb-shaped design with precision cut gaps to determine the coating thickness by placing vertically onto a wet coated substrate. it is a corrosion-resistant stainless steel with a hole at the top comer so that a string（not supply）can be attached for hooking.

        All Wet Film Thickness Gauges come standard with 10 gaps with inscriptions of the thickness at the side of each gap. It is recommended to replace a new gauge if there are chips, crack or uneven at the gap（s）of the gauge.

■ Ordering Information：

    BGD 531/1   10-100µm  （@10µm）
    BGD 531/2   20-200µm （@20µm）
    BGD531/3   50-750µm  （@25µm/@50µm）
    BGD 531/4   250-700µm  （@50µm）
    BGD 531/5   50-950µm （@50µm）
    BGD 531/6  300-2600µm  （Quadrilateral @100µm）
    BGD 531/7  250-3,000µm  （Hexagon）

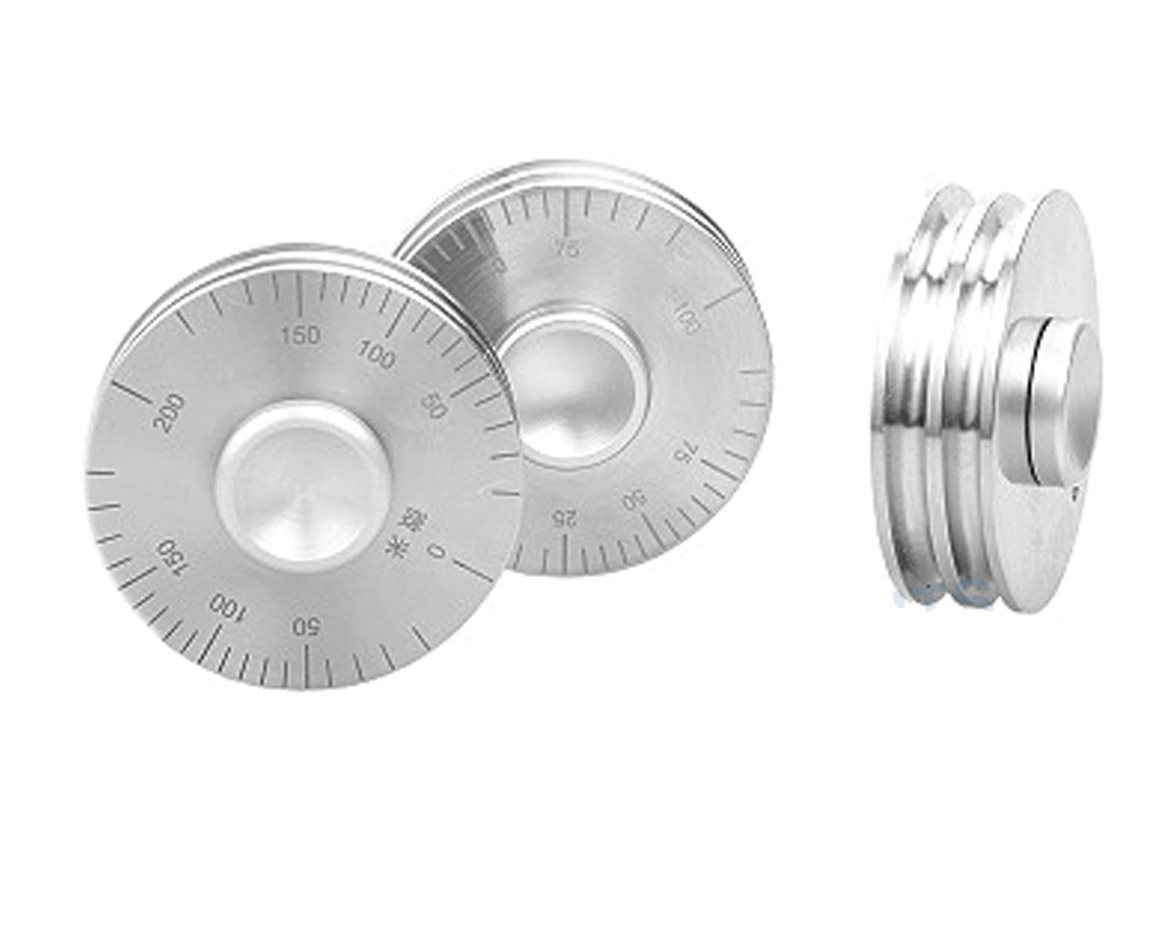

Rulo Islak Film Kalınlık Ölçer

       The Rolling Wheel Wet Film Thickness Gauge has long been the standard for measuring wet film thickness in the coatings industry. （U.S.Patent No.3, 128,558）.

        The gauge consists of an eccentric inner wheel, supported by two large outer concentric wheel. At a specific point, the inner wheel touches and picks up wet film when the gauge is rolled on the coated surface. The critical clearance may be read on a rotating scale.

        The body of the gauge is made of high-grade stainless steel, while the centre holder is made of lightweight aluminum. The scale value are casted on 1 side.

        Biuged offer three basic models in various ranges. All models have an accuracy of 2.5µm（±0.0001 in） or 2.5% full scale, whichever is greater.

Main Technical Parameters

■ Dimensions：50（Φ）×15（H） mm@2mm path

■ Weight：approx.177g

■ Ordering Information：

    BGD 532/1   0-100µm  （@5µm）
    BGD 532/2   0-200µm  （@10µm）
   BGD 532/3   0-500µm  （@50µm）

   BGD 532/4   0-1,000µm  （@100µm）

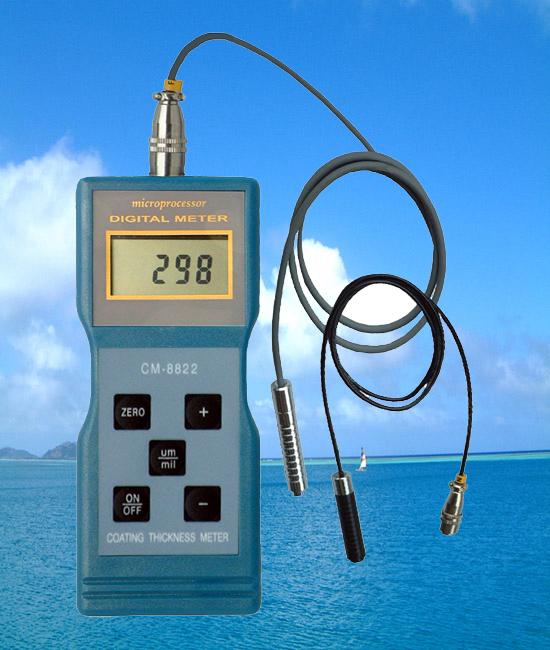

Kuru  Film Kalınlık Ölçer(Problu)

Using magnetic induction or Eddy current, this electronic gauge offers precision thickness measurement of non magnetic coatings such as paints, zinc etc. on steel（F：ferrous probe）, and insulating materials on non-ferrous substrates（FN：non-ferrous.）. The gauge is available with either integral or external F, N or dual FN probes. The FN probe features automatic substrate recognition to simplify operation.
        Biuged offer many different types of thickness Gauges to meet with different clients’ request under different conditions.

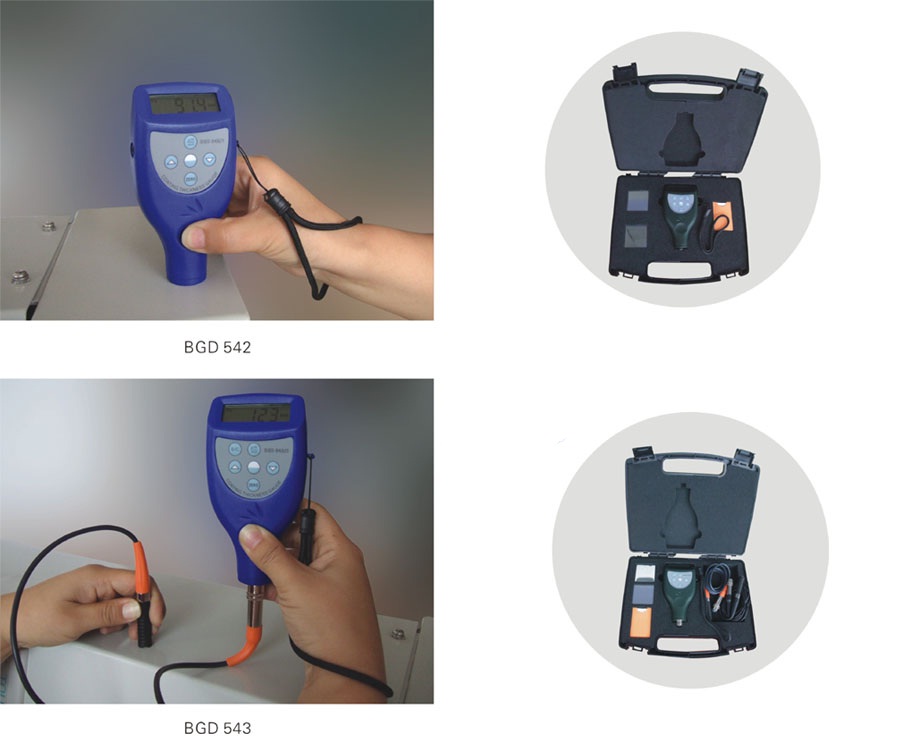

Kuru  Film Kalınlık Ölçer(Probsuz)

       Using magnetic induction or Eddy current, this electronic gauge offers precision thickness measurement of non magnetic coatings such as paints, zinc etc. on steel（F：ferrous probe）, and insulating materials on non-ferrous substrates（FN：non-ferrous.）. The gauge is available with either integral or external F, N or dual FN probes. The FN probe features automatic substrate recognition to simplify operation.
        Biuged offer many different types of thickness Gauges to meet with different clients’ request under different conditions.

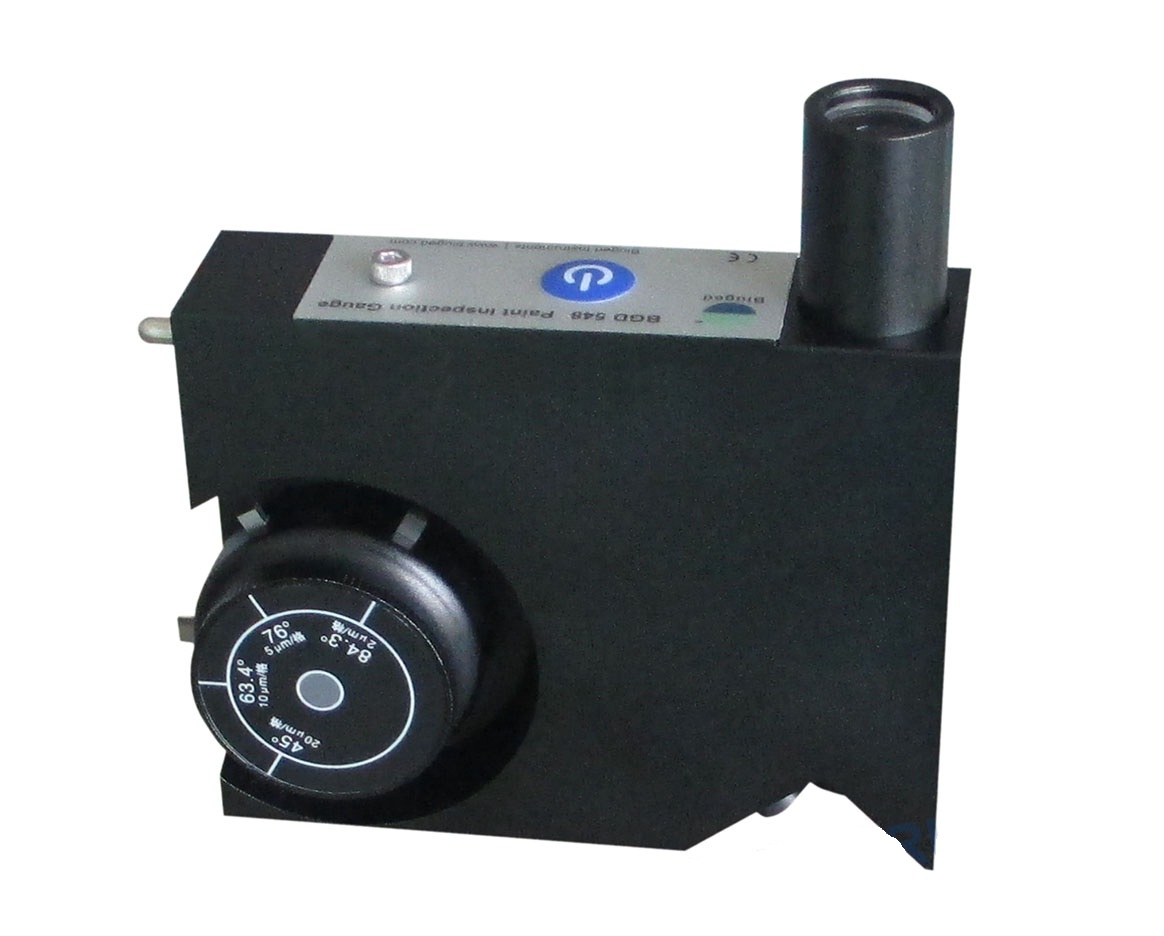

Ağaç,Beton,Demir Olmayan Malzemelerin Kaplama Kalınlığını Ölçer
