Renk Ölçüm Cihazları
Portatif Renk Ölçüm Cihazı
Since 1998, from import to domestic, BGD 551 precisioncolorimeter is an iconic milestone in color test industry.
◆ Double Locating：Illuminating locating and cross locating
◆ DoubleMeasurement End Face： Large area measurement and smallarea measurement
◆ NewIntegrating Sphere Design： Morestable measurement
◆ Equippedwith Rechargeable High-Capacity Li-ion Battery
Feature and Advantages
◆ Built-in white plate parameters. Noneed to calibrate each time which realize rapid measurement.
◆ Double Locating: Illuminating locating andprecise cross locating.
◆ Switchable Double Measurement End Face:Large stable end face and small concave-convex end face.
◆ New Integrating Sphere Optical Path Design:Eliminating the stray light of main optical path and auxiliary optical path.Possessing the highest measurement stability and precision.
◆ 4mm Measuring Aperture.
◆ Equipped with rechargeable high-capacityLi-ion battery. No need to purchase battery repeatedly.
◆ Configure CQCS3 software. Connect PCcomputer to realize more functions.
◆ Having got SCM Metrological Certification,CE Certification, and ISO9001 Quality Management System Certification.
◆ Hand-head structure: small and convenient;make the measurement easier.
◆ Spending huge sums on high-end mold.Product consistency approaches 100%.
◆ High cost performance: large output, goodquality, cheap products.
|
Technical Parameters |
|
|
Illuminating/Viewing Geometry |
8/d |
|
Measuring Aperture |
Φ4mm |
|
Detector |
Silicon photoelectric diode |
|
Locating |
Illuminating Locating/Cross Locating |
|
Measurement End Face |
Large stable end-face and small concave-convex end-face |
|
Color Space |
CIEL*a*b*C*h* ；CIEL*a*b*；CIEXYZ |
|
Color Difference Formula |
△E*a b △L*a*b* △E*C*h* |
|
Light Source |
D65 |
|
Light Source Device |
LED blue light excitation |
|
Errors Between Each Equipment |
≤0.80ΔE*a b |
|
Storage |
100pcs standards； 10000pcs samples |
|
Repeatability |
Standard deviation within △E* a b 0.08 |
|
Language |
English/Chinese |
|
Weight |
450g |
|
Dimension |
205×67×80 mm |
|
Power source |
Rechargeable lithium-ion battery 3.7V@3200mAh |
|
Lamp Life |
3 years, more than 1.6 million measurements |
|
Charging Time |
8 hours--100% electricity |
|
PC Software |
CQCS3 Software |
|
Printer (optional) |
Miniature thermal printer |
■ Ordering Information：BGD 551--- Economic Portable Colorimeter
Hassas Bilgisayarlı Renk Ölçüm Cihazı
High-End Brand of Colorimeter
BGD 556 is a mainstream brand colorimeter introduced by BIUGEDwhich has synthesized the advantages of ten more traditional importedcolorimeters and has experienced ten thousands tests and applied manyinnovative technologies. Accurate, Stable, Exquisite and Affordable!
The PreferredSolution for Color Quality Control Management
BGD 556 high-quality portable colorimeter has adopted multi-channelcolor sensors of international brands, more stable IC platform as well asefficient and accurate algorithms to provide users with accurate and fast colormanagement and application. BGD 556 is also designed with ergonomics and humanized operation and it has applied for a number of patents. BGD 556 is amultifunctional colorimeter with high quality and competitive price. BIUGED insistson independent research whose technology innovation is unique in colormanagement field. BGD 556 is the most convenient colorimeter for users.
Main Windows Color Measurement
◆ Leading Humanity Design andConvenient Operation
★ Auto White and Black Calibration at Startup
★ Structure design in line with Ergonomics
★ Fool-style Operation Interface
◆ Stable Measurement Performance
★ The average fluctuation of △E is less than 0.06, actually more in 0.03~0.05.
★ Portable structure design which is more conductive to keeping the instrument stable whenusing.
◆ Flexible and Accurate Locating
★ Camera locating can solve the problem of locating a small area. The minimum width oflocating is 4mm.
★ Illumination locating is a fast, simple and convenient locating function which is theoriginal function by 3nh.
◆ More Measurement Modes
★ Three measuring apertures for more circumstances.
★ Five color spaces for more color schemes selection.
★ Three light sources for more circumstances.
◆ PC Software—Realize More FunctionExpansion
★ BIUGED has the intellectual property of PC software. The corresponding software serial number and password protection are configured in BGD colorimeter.
★ Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample data base management, simulating object color, etc.
◆ Advanced Power Management Design
★ BIUGED is the first enterprise using high capacityLi-ion battery in colorimeter.
★BIUGED Li-ion battery can berepeatedly charged which will save cost. Meanwhile, it can measure more than3000 times on one charge to ensure the stability of long time measurement.
★National Patent and InnovativeTechnology
★No.1 Camera locating andillumination location; New functions of double locating
★No. 2 Built-in white plate;Automatic calibration at startup
★ No. 3 Extended aperture (optional), available formeasuring concave surface
|
Technical Parameters |
|
|
Illuminating/Viewing Geometry |
8/d |
|
Measuring Aperture |
Φ8mm/Φ4mm |
|
Detector |
Silicon photoelectric diode |
|
Color Space |
CIEL*a*b*C*h* ；CIEL*a*b*；CIEXYZ；CIERGB； CIEL*u*v*； CIEL*C*h；Yellowness & Whiteness ；Color Fastness |
|
Color Difference Formula |
△E*a b；△L*a*b*；△E*C*h*；△ECIE94；△E hunter |
|
Light Source |
D65；D60；A |
|
Light Source Device |
LED blue light excitation |
|
Errors Between Each Equipment |
≤0.40ΔE*a b |
|
Storage |
100pcs standards； 20000pcs samples |
|
Repeatability |
Standard deviation within △E* a b 0.06 |
|
Language |
English/Chinese |
|
Weight |
500g |
|
Dimension |
205×70×100 mm |
|
Power source |
Rechargeable lithium-ion battery 3.7V@3200mAh |
|
Lamp Life |
5 years, more than 1.6 million measurements |
|
Charging Time |
8 hours--100% electricity |
|
Measuring Times Before Recharging |
3000 times in 8 hours |
|
Operating Environment |
-10~40℃, relative humidity 0~85% with no condensation |
|
PC Software |
CQCS3 Software |
|
Data Interface |
USB |
|
Extended Aperture （Optional） |
Φ8mm extended aperture, available for measuring concave surface |
|
Printer（Optional） |
Miniature thermal printer |
CQCS3 Color Analysis Software

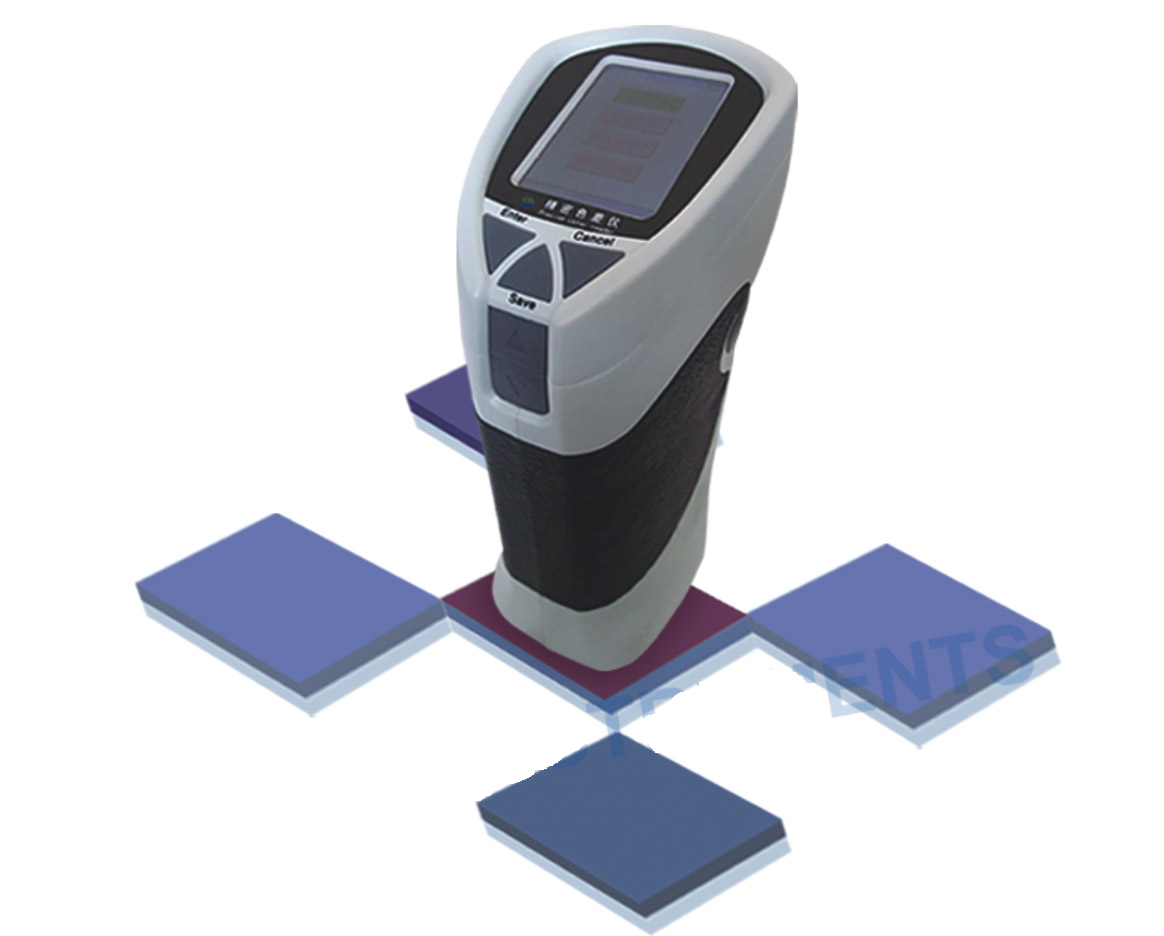

Hassas Renk Ölçüm Cihazı
BGD 553 and BGD 554 Precise Colorimeter is the second generation product of BGD 552.Developed by Biuged , it is advanced and perfect colorimeter which has the highest price-performance ration product among domestic similar products.
This meter is produced strictly according to relative CIE standards and can measure the color difference value between different color, L*a*b* value, and includes a professional data processing software. With this software, operator can control the meter to measure the sample by computer, and let the data be shown as many types mode and pictures. And also can download the data to office software. Moreover, the software can offer data management, analysis and evaluation mode, can give many helps to your research and development or quality control.
It is used to do color measurement, including paint, plastic, rubber, textile printing, print, car and paper making field. It can be used alone, and also to do color quality control together with computer.
Features：
◆ Pass the verification issued by the third national institute，with highest price-performance ratio products among similar products
◆ Including standard black board for calibration, ensure accuracy for every measurement
◆ Can establish the L*a*b* value of st
