Su Banyosu

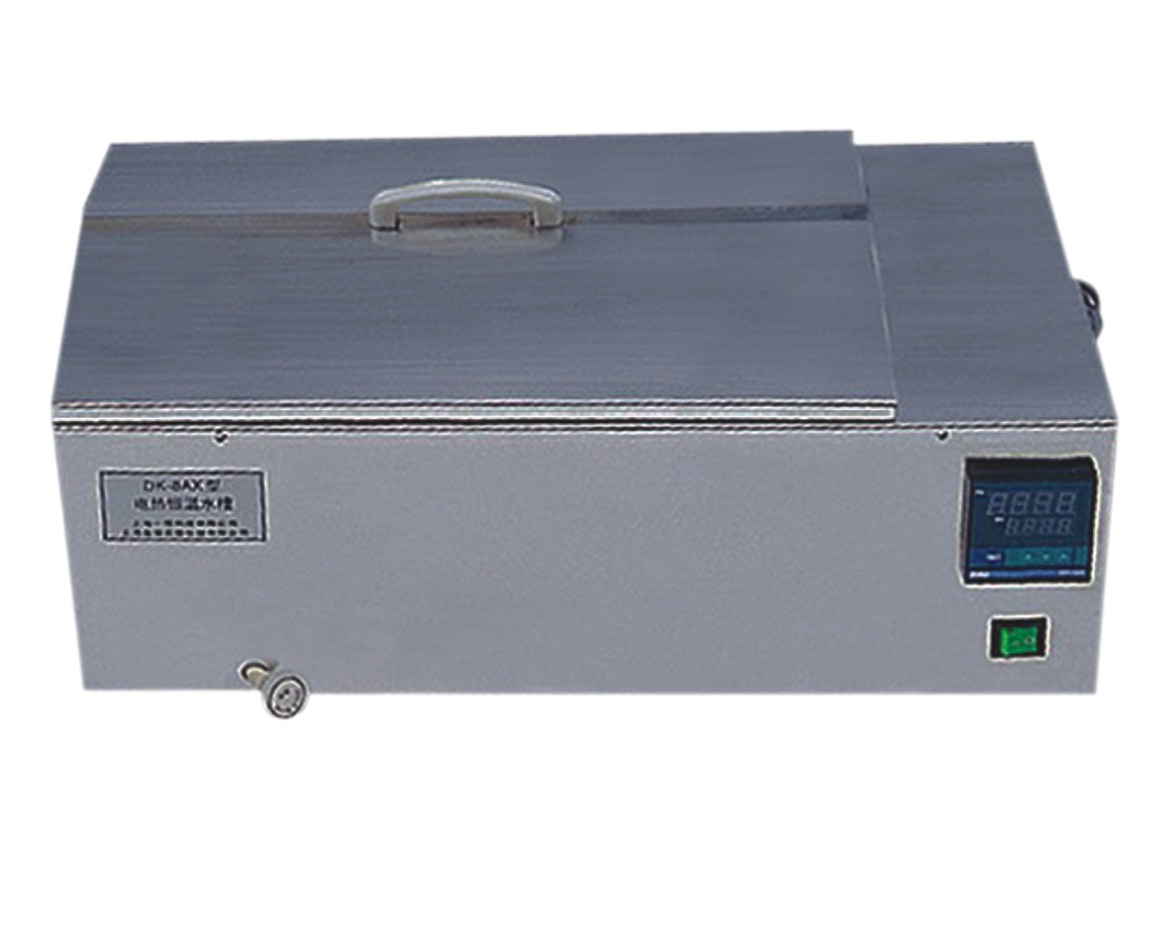

Isıtma Banyosu
Main Technical Parameters
■ Interior of bath is made of stainless steel with a beautiful and novel appearance.
■ Digits display, Microprocessor control with timing function.
■ Audible and visible tracking alarm indicates over temperature, which provide samples reliable protection.
■ Power Supply： 220V 50HZ
■ Temperature Stability： ± 0.5 ℃
■ Temperature Track Alarm： +2 ℃
■ Timing Range： 1～9999min
■ Ordering Information
|
Technical Item→ Ordering Information ↓ |
TemperatureRange |
Power |
Cubage |
interior Dimension |
Overall Dimension |
|
BGD 834 |
RT+5~99 ℃ |
500W |
11L |
420×180×150 |
570×270×260 |
|
BGD 835 |
RT+5~99 ℃ |
1000W |
34L |
600×300×190 |
750×400×300 |
|
BGD 836 |
RT+5~99 ℃ |
400W |
12L |
320×240×160 |
460×280×190 |
|
BGD 837 |
RT+5~99 ℃ |
600W |
22L |
450×300×160 |
610×340×190 |
|
BGD 838 |
RT+5~99 ℃ |
1000W |
30L |
600×300×160 |
760×340× 190 |

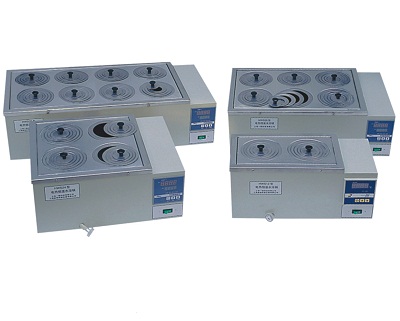

Su Banyosu
Main Technical Parameters
■ Interior of bath is made of stainless steel and the center lids can be removable discretionarily.
■ High precision microprocessor temperature controller ensures a precise and reliable temperature control.
■ Audible and visible tracking alarm indicates over-temperature, which provide samples reliable protection.
■ Ordering Information
|
Ordering Information → Technical Item ↓ |
Water Bath （with removable center lids） |
|||
|
BGD 830 |
BGD 831 |
BGD 832 |
BGD 833 |
|
|
Electrical Requirements |
220V 50HZ |
|||
|
Input Power |
500W |
1000W |
1500W |
2000W |
|
Temperature Range |
From ambient+5 to 99℃ |
|||
|
Temperature Stability |
±0.5℃ |
±0.5℃ |
||
|
Tracking Aarm |
±0.2℃ |
|||
|
Chamber Capacity |
4.9L |
9.9L |
14.8L |
19.8L |
|
Interior Dimension |
150×300×110 |
300×300×110 |
450×300×110 |
600×300×110 |
|
Timing Range |
1~9999min |
|||
|
Note |
Two holes |
Double columns four holes |
Double columns six holes |
Double columns eight holes |

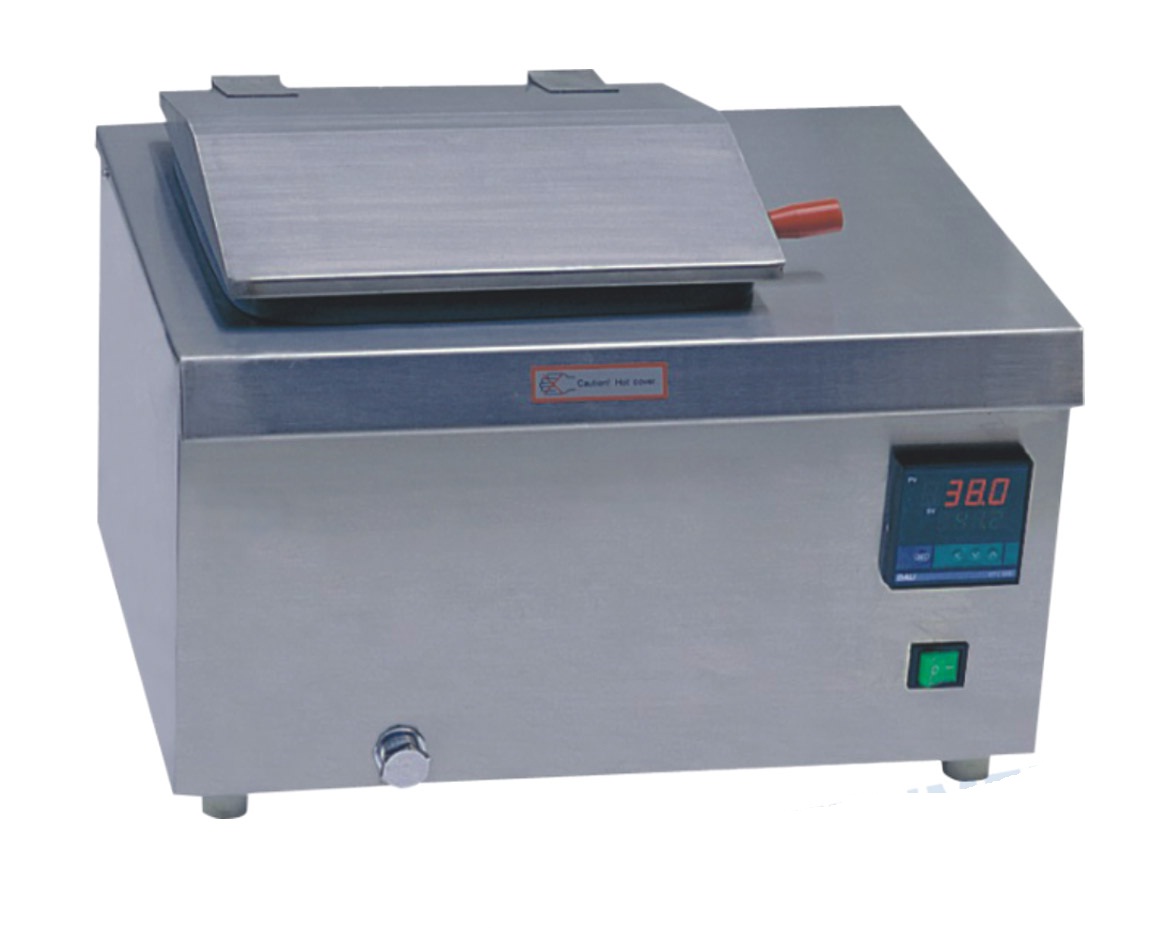

Yağ Banyosu
Main Technical Parameters
■ Interior of bath is made of stainless steel and the center lids can be removable discretionarily.
■ High precision microprocessor temperature controller ensures a precise and reliable temperature control.
■ Audible and visible tracking alarm indicates over-temperature, which provide samples reliable protection.
■ Ordering Information：
BGD 839---Oil Bath（12L/250×250×200mm）
BGD 840---Oil Bath（20L/400×250×200mm）
