Xenon Test Odası (Chamber)

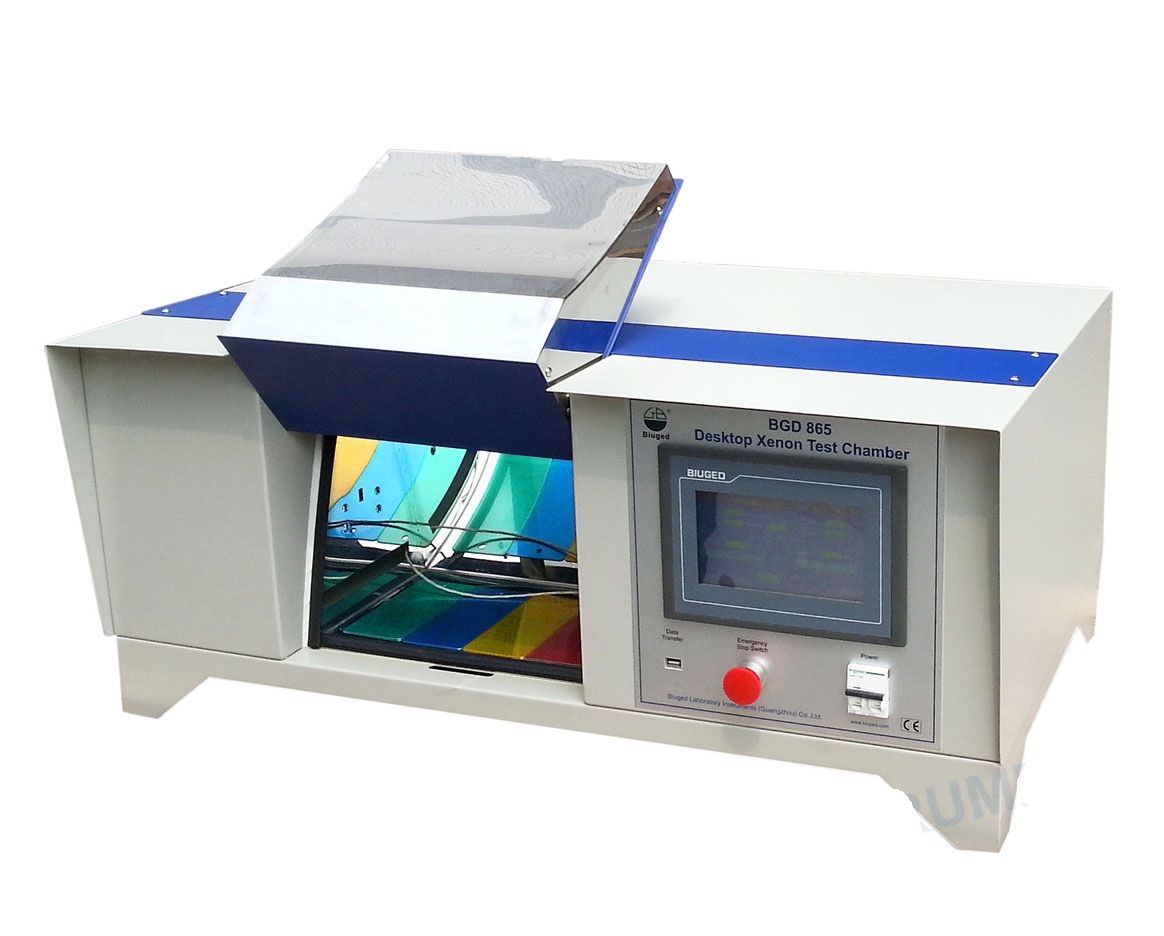

Bench Xenon Test Odası(Chamber)

Main Technical Parameters

■ Xenon Lamp：a 1.8KW imported originally Xenon lamp or a Chinese 1.8 KW Xenon lamp

■ Fliter：Daylight filter or Windows Glass filter

■ Lamp Lifetime: Near 1,500 hours

■ Exposure Area：1,000 cm² (can put 9 standard samples 150×70mm)

■ Adjustable Irradiance Range：
      0.35～0.70 W/m² (Single point of control: 340nm)
     0.5～2.1 W/m² (Single point of control: 420nm)

      30 W/m²～100 W/m² (Full spectrum :from 300～400nm)

■ Adjustable Black Board Temperature Range：RT+30℃～80℃

■ Interior Material of Chamber：Stainless steel -SUS 304 material

■ Exterior Material of Chamber：Powder coating

■ Overall Size：1050×530×375mm

■ Weight：65 KG

■ Power Supply：220V 50/60HZ；Max Current 13A

■ Ordering Information:

     BGD 865---Bench Xenon Test Chamber
     BGD 8155---Xenon Lamps （1.8 KW）

     X-1800--- Q-Lab Xenon Lamps （1.8 KW）


Bench Xenon Test Odası (Chamber)

Main Technical Parameters

■ Xenon Lamp：a 1.8KW imported originally Xenon lamp or a Chinese 1.8 KW Xenon lamp

■ Filter：Daylight filter or Windows Glass filter

■ Lamp Lifetime: Near 1,500hours

■ Exposure Area：1,000 cm² (can put 9 standard samples 150×70mm)

■ AdjustableIrradiance Range：0.35～0.70 W/m² (Singlepoint of control: 340nm)；
                                                         0.5～2.1 W/m²(Single point of control: 420nm)；

                                                         30 W/m²～100 W/m² (Fullspectrum :from 300～400nm)

■ AdjustableBlack Board Temperature Range：RT+30℃～80℃

■ Interior Material of Chamber：Stainless steel -SUS 304 material

■ Exterior Materialof Chamber：Powdercoating

■ OverallSize：925×487×1,000mm

■ Net Weight：110KG

■Power Supply：220V 50/60HZ；Max Current 13A

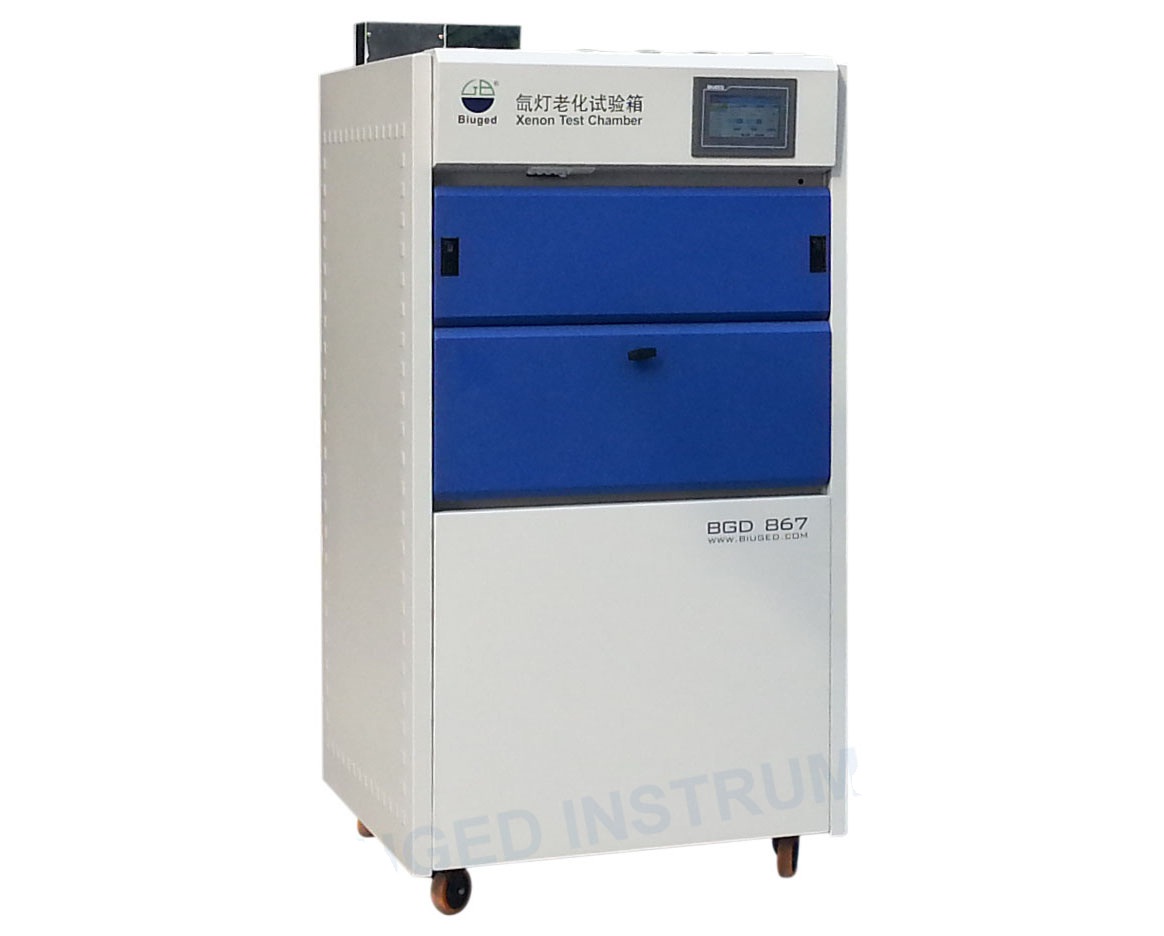

Bench Xenon Test Odası(Chamber)

Main Technical Parameters

■ Xenon Lamp：three 1.8KW imported originally Xenon lamp

■ Filter：Daylight filter or Windows Glass filter

■ Lamp Lifetime: Near 1,500hours

■ Exposure Area：2,800 cm² (can put 24 standard samples 150×70mm)

■ AdjustableIrradiance Range：
    0.35～1.0 W/m² (Single pointof control: 340nm)；
    0.5～2.0 W/m²(Single point of control: 420nm)；

    50 W/m²～120 W/m² (Fullspectrum :from 300～400nm)

■ AdjustableBlack Board Temperature Range：RT+30℃～90℃

■ Adjustablerelative humidity of working room：30%～75%（Light）；50%～95%（Spray or Dark）

■ Interior Material of Chamber：Stainless steel -SUS 304 material

■ Exterior Materialof Chamber：Powder coating

■ Overall Size：940×940×1,735mm

■ Net Weight：400KG

■ Power Supply：220V 50/60HZ；Max Current 36A
