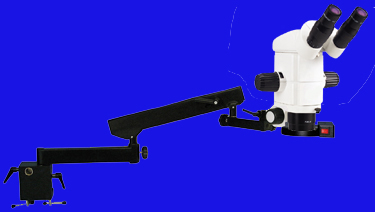

SM Series Zoom Stereo Microscope
|
| |
We are in honors of supplying you new SM series zoom stereo microscope. Two parallel beam paths and high quality optic system offer you high resolution and distortion-free contrast image throughout the entire zoom range, zoom ratio is 8:1, SM also use modular design, we can supply you various packages with the high resolution and the most valuable microscope.
| (1) Design principle: two parallel beam paths optic system, modular construction |
| (2) Standard set: SM optic head with 1.0x plan achromatic objective |
| (3) Zoom range: 0.62x-5x |
| (4) Zoom ratio: 8:1 |
| (5) Magnification: 6.2x-50x (with accessory lens: 1.9x-400x ) |
| (6) Working distance: 80mm (with accessory lens: 26mm-296mm) |
| (7) Field of view: 33.9mm- 4.2mm (with accessory lens: 106mm- 0.6mm) |
| (8) Interpupillary distance: 50mm-75mm |
| (9) Dioptric correction: +5 -- -5 |
| (10) Optional objective: planachrmatic: 0.32x , 0.5x, 0.63x achromatic: 1.6x, 2.0x |
| (11) Optional eyepiece: WFH10x-D/21, WF16x, WF20x, WF25x, WF40x |
|
|
| |
| |
| Eyepiece |
WFH10X-D/21 |
WF16X/14 |
W F 20X/11 |
WF25X/9 |
WF40X/6 |
Working Distane |
| Objective |
Mag. |
FOV(mm) |
Mag. |
FOV(mm) |
Mag. |
FOV(mm) |
Mag. |
FOV(mm) |
Mag. |
FOV(mm) |
| 0.32x |
1.9x-
16x
|
106-13.1mm |
3.2x-25.6x |
70.6-8.8mm |
3.9x-
32x
|
55.4-6.9mm |
5x-
40x
|
45.4-5.6mm |
7.9x-
64x
|
32.2-3.8mm |
296mm |
| 0.5x |
3.1x-
25x
|
67.7- 8.4mm
|
5x-
40x
|
45.2-5.6mm
|
6.2x-
50x
|
35.5-4.4mm
|
7.8x- 62.5x
|
29-
3.6mm
|
12.4x- 100x
|
19.4- 2 .4mm
|
187mm |
| 0.63x |
3.9x- 31.5x
|
53.8- 6.7mm
|
6.2x- 50.4x
|
35.8- 4.4mm
|
7.8x-
63x
|
28.2-3.5mm
|
9.8x- 78.8x
|
23-
2.9mm
|
15.9x- 126x
|
15.4- 1.9mm
|
149mm |
| 1.0x |
6.2x-
50x
|
33.9- 4.2mm
|
9.9x-90x |
22.6- 2.8mm
|
12.4-
100x
|
17.7- 2.2mm
|
15.5x- 125x
|
14.5- 1.8mm
|
24.8x- 200x
|
9.7- 1.2mm
|
80mm |
| 1. 6x |
9.9x-
80x
|
21.2- 2.6mm
|
15.9x- 128x
|
14.1- 1.8mm
|
19.8x- 160x
|
11.1- 1.4mm
|
24.8x- 200x
|
9.1-
1.1mm
|
39.7x- 320x
|
6.1- 0.8mm
|
50mm |
| 2.0x |
12.4x- 100x
|
16.9- 2.1mm
|
19.8x- 160x
|
11.3- 1.4mm
|
24.8x- 200x
|
8.9-
1.1mm
|
31x-
250x
|
7.3-
0.9mm
|
49.6x- 400x
|
4.8- 0.6mm
|
26mm |
|
|
|
